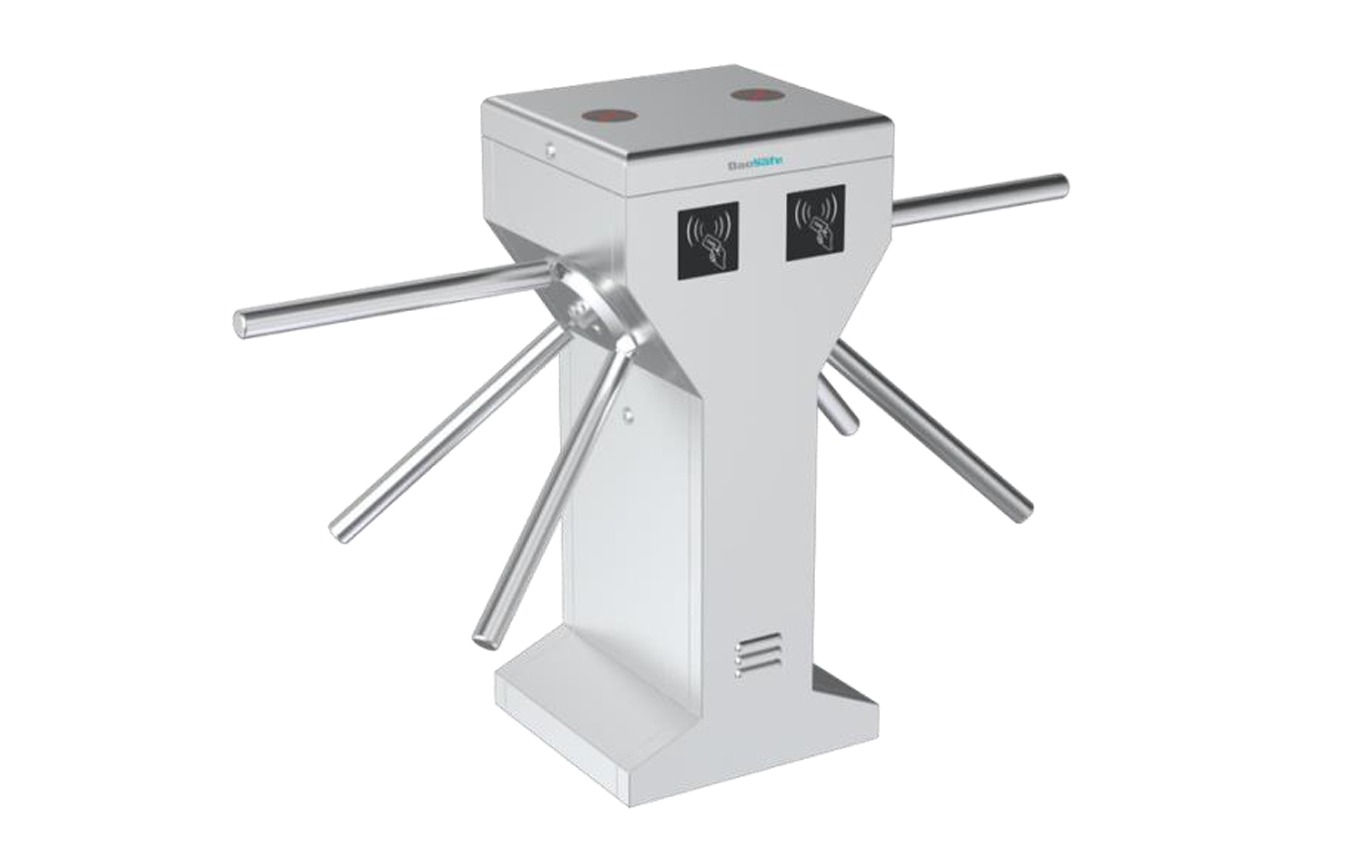

DS100S tripod
Tripod turnstiles are compact and cost-effective entrance/exit security solutions.
The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable.
Product details
It is ideal for both indoor and outdoor settings.
It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID, Fingerprint and Biometric reader device).
It has sufficient space, which can mount with any type of external device.( e.g.: Display, Counter, Reader, Push button, Card collector, Coin insert, Barcode/QR reader, Wheel).
Long-life performance, high operation dependability and fast response.
The whole system runs smoothly, low noise, no mechanical impact.
Single directional or Bi-directional is selectable.
Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry.
When power is off, arms will drop down automatically, which is complying with fire safety requirements.
Technical specification
Model No. |
DS100S |
Brand |
Daosafe |
Framework Material |
304 Full Stainless Steel |
Arm |
Stainless Steel ( red color rubber padding for choose) |
Dimension |
420 * 520 * 990mm |
Weight |
50kg/pcs |
Passage Width |
550mm (Arm length: 500mm) |
Passing Direction |
Single directional / Bi-directional |
MCBF |
5 million |
Power Supply |
AC220V/110V, 50/60Hz |
Operation Voltage |
24V DC |
Power Consumption |
20W |
Operation Temperature |
-15 °C - 60 °C |
Operation Humidity |
0 ~ 95% (No freeze) |
Working Environment |
Indoor / Outdoor |
Flow Rate |
35-40 people per minute |
LED Indicator |
Yes |
Emergency |
Automatic arm drop when power off |
Communication |
Dry contact, Relay signal, RS485 |
