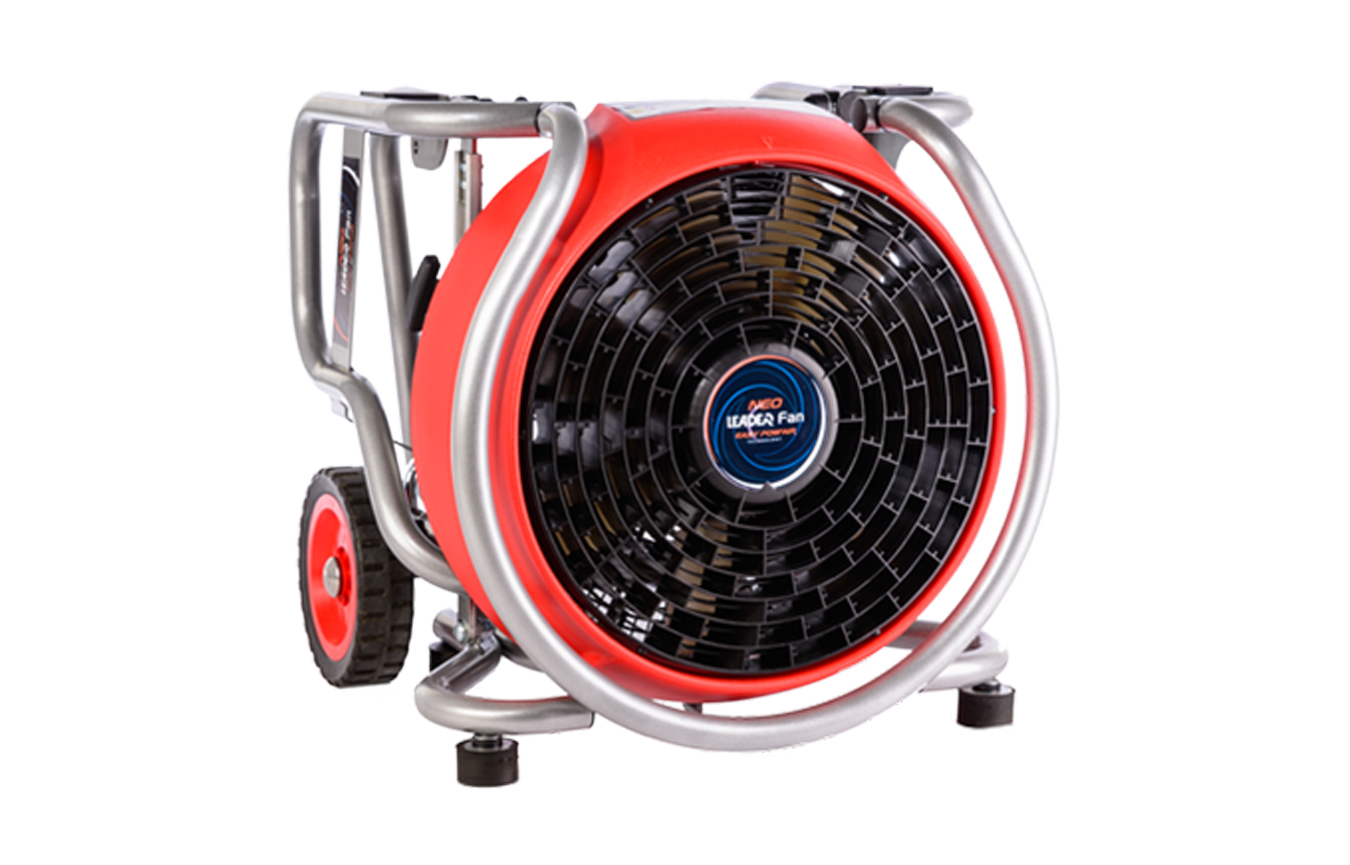

Powered by a water-driven engine with a control valve and a pressure gauge, MH236 water-driven fan is easy to use.

Product details

Created to generate no exhaust gas and requiring no electrical power, it can be used anywhere provided it has a properly sized water supply.

Equipped with a standard misting system, this water-driven fan can cool the air quickly. Compact, it fits easily in a vehicle.

Powered by a water-driven engine, MH236 does not generate any exhaust gas and requires no power supply.

Technical specification

Open air flow
51,100 m³/h
Weight
32.6 kg
Dimensions W x H x D
550 x 560 x 490 mm
Propeller diameter
420 mm
Engine
Water-driven motor in aluminium with DSP 65 coupling, cutoff and control valve, and pressure gauge
Engine power
9 HP
Power supply
Water under pressure
Consumption
620 l/min @ 10 bar
Engine supply couplings
Inlet / Outlet: 2'' male
Noise level
92.8 dB at 3m
Ventilation type
PPV blowing
Application Single door – houses, small buildings
Integrated mister
Yes
