With its unique system, the foam proportioner LEADER MIX 2000 offers, from 5 bar, a precise proportioning rate from 0.3 to 6% for all types of emulsifiers (fluorinated, fluorine-free, alcohol-resistant).

Product details

The 1% and 3%V positions have been calibrated for dosing viscous products. The LEADER MIX 2000 proportioning injector automatically adapt the proportioning on a flow from 300 to 2000 l/min. By combining several LEADER MIX 2000 LEADERs, increase the flow ranges. E.g.: for 2 LEADER MIX 2000, obtain a useful range from 600 to 4000 l/min.

Easy to use, a remote control panel allows to see the inlet pressure and choose working settings (dosing, water only, rinsing). Ideal equipment for fire departments and fixed foam systems!

The foam inductor proportioner LEADER MIX 2000 is a 100% mechanical foam eductor it works without electronics. LEADER MIX 2000 adapts itself directly to nozzle or monitor flow variation.

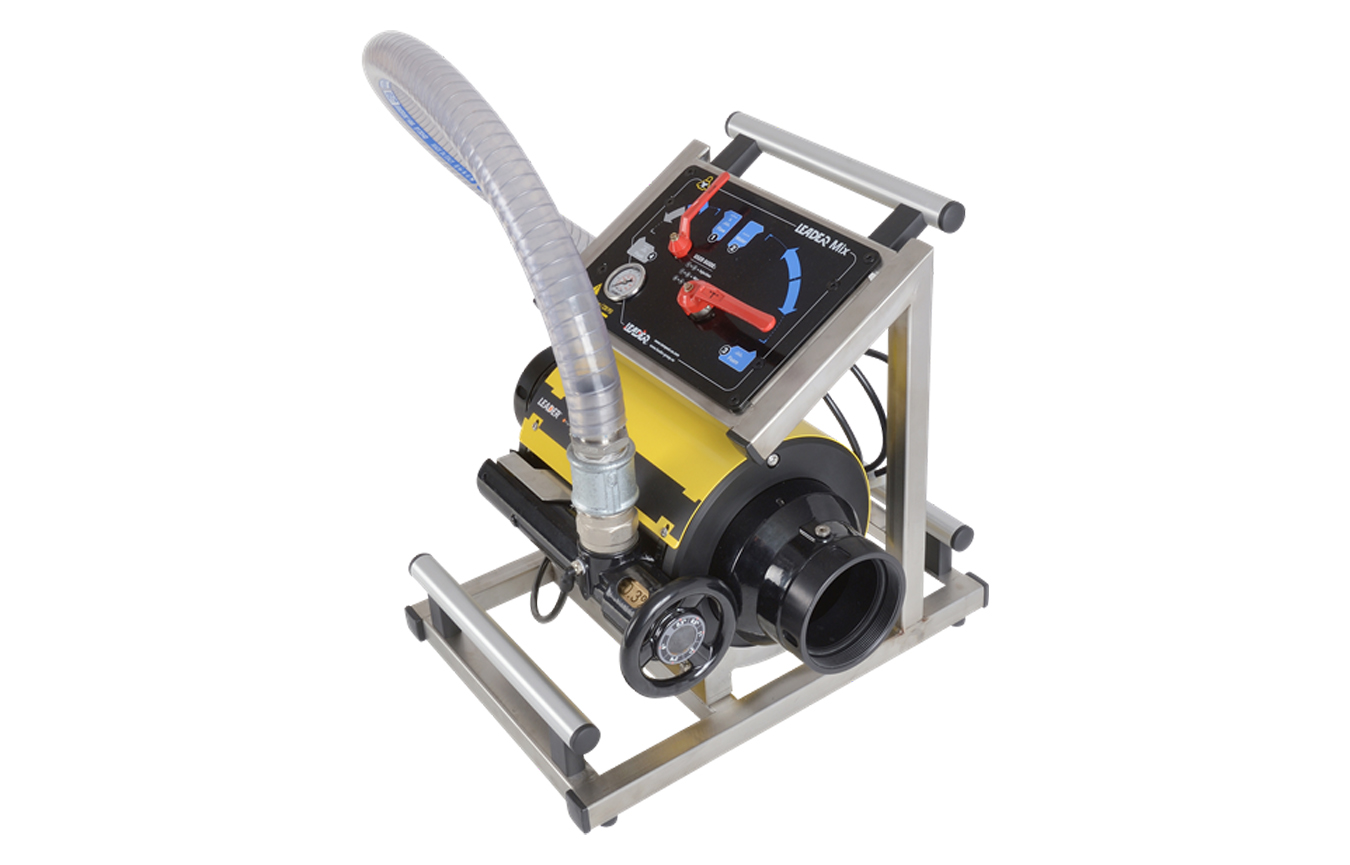

+Image

Technical specification

Flow range
300 to 2000 l/min
Regulating pressure
5 to 16 bar
Dosage
0.3%, 0.5%, 1%, 3%, 3%V, 6%
Inlet / Outlet
4'' BSP female
Storage temperature
-20°C to +60°C_x000D_
Operating temperature
0°C to +50°C_x000D_
Pressure loss
35% to 40%.
Bypass to reduce pressure losses
Yes
Inlet pressure gauge
yes, on the control panel
Weight
27,5 kg for the "Fixed" version
34kg for the "Transportable" version
Dimensions W x H x D
520 x 265 x 330 mm for the "Fixed" version
520 x 510 x 515 for the "Transportable" version
Carrying handle
no
Extraction tube
No for the "Fixed" version
Flexible equipped with a plunger rod - W:2.5m / 1,5'' Storz C for the "Transportable" version
Foam supply
1,5'' BSP F for the "Fixed" version> Storz C quick coupling for the "Transportable" version
Check valve on the foam inlet
Yes
Purge button
Yes on the control panel
