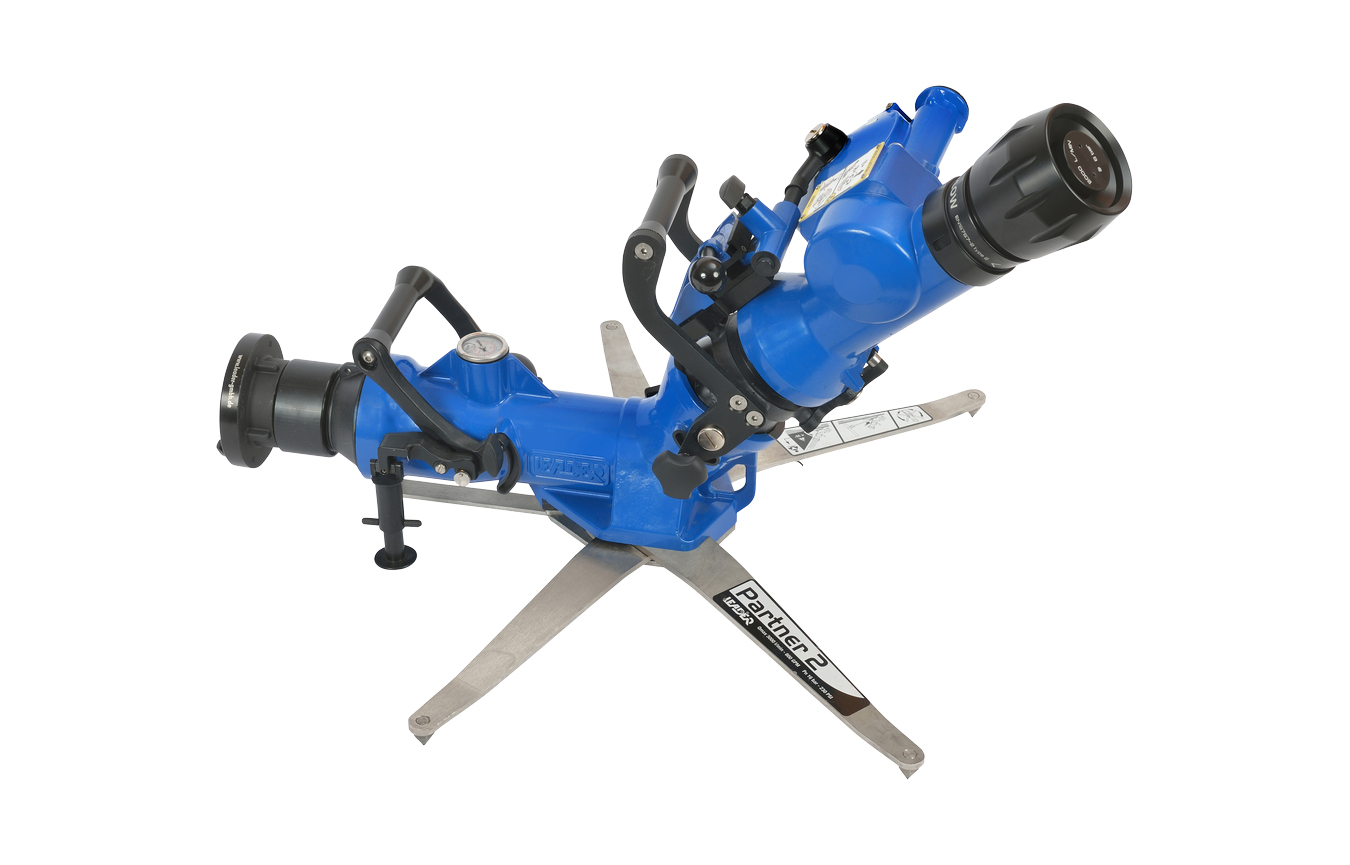

Portable monitor - 3000 l/min partner 2 osc
Lightweight (only 13.8 kg) and compact, PARTNER 2 OSC is deployed in seconds. It has a powerful flow rate of up to 3000 l/min.
Product details
PARTNER 2 is equipped with a safety valve that reduces the flow rate in order to protect the firefighters while avoiding any excessive water hammer.
PARTNER 2 OSC is equipped with an oscillating system that allows automatic sweep with an adjustable amplitude of 10° to 40°.
Very low maintenance due to its very robust design and materials used.
PARTNER 2 monitor complies with the requirements of the European standard EN 15-767.
Technical specification
| Weight | 13.8 kg |
Flow rate
|
up to 3.000 l/min |
| Pressure | 6 bar |
| Available inlets | 2.5" BSP F 4’’ BSP F 4’’ BSP M |
| Swivel | 2.5’’ BSP F 4’’ BSP M |
| Material | cast aluminium body and stainless steel supports |
| Dimensions w x d x h | Retracted - 76 x 36 x 36cm Extended - 71 x 65 x 36cm |
Safety valve
|
yes |
Pressure gauge protected
|
yes |
Vertical elevation
|
up to 85° (from 25°) |
| Horizontal orientation | -20° to + 20° |
| Oscillation | yes |
| Convertible | no |
