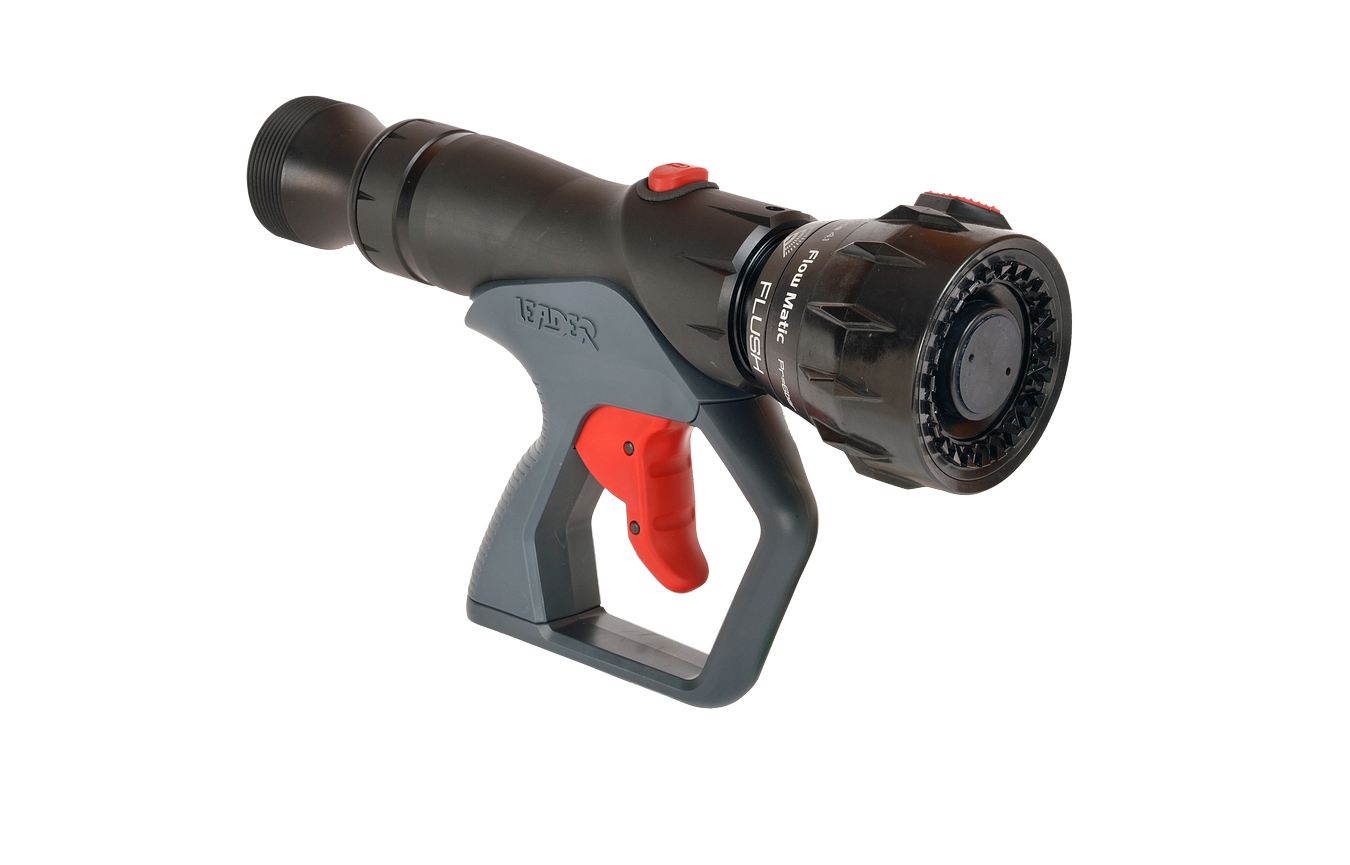

Automatic nozzle with trigger triggerflow compact
Revolution in the firefighting area: TRIGGERFLOW Compact automatic nozzle with trigger is ideal for Pulsing. Its design makes it safer, more intuitive and more ergonomic.
Product details
A complete control of the nozzle without the need to move the hands. One hand holds the nozzle and controls the flow rate with the fingertips, and the other hand manages the jet pattern and will withstand the recoil force if necessary.
One hand holds the nozzle and controls the flow rate with the fingertips, and the other hand manages the jet pattern and will withstand the recoil force if necessary.
Technical specification
| Type | Automatic |
| Weight | 2.2kg |
| Available models | TriggerFlow 150: 0 - 150 l/min @ 6 bar 1'' BSP F TriggerFlow 250: 0 - 250 l/min @ 6 bar 1'' BSP F TriggerFlow 250: 0 - 250 l/min @ 6 bar 2'' BSP M TriggerFlow 400: 0 - 400 l/min @ 6 bar 1.5'' BSP F TriggerFlow 400: 0 - 400 l/min @ 6 bar 2'' BSP M |
Dimensions w x d x h
|
1’’ = 31 x 9 x 21cm & 1.5’’ = 32 x 9 x 21cm 2’’ = 34 x 9 x 21cm |
| Pressure |
6 bar
|
Available inlets
|
2'' BSP M 1.5'' BSP F 1'' BSP F |
| Material | Hard anodised aluminium |
| Size | Compact |
| Valve |
stainless steel slide valve
|
| Bumper | polyurethane |
Nominal pressure
|
40 bar
|
| Special features | Flow rate control by trigger |
